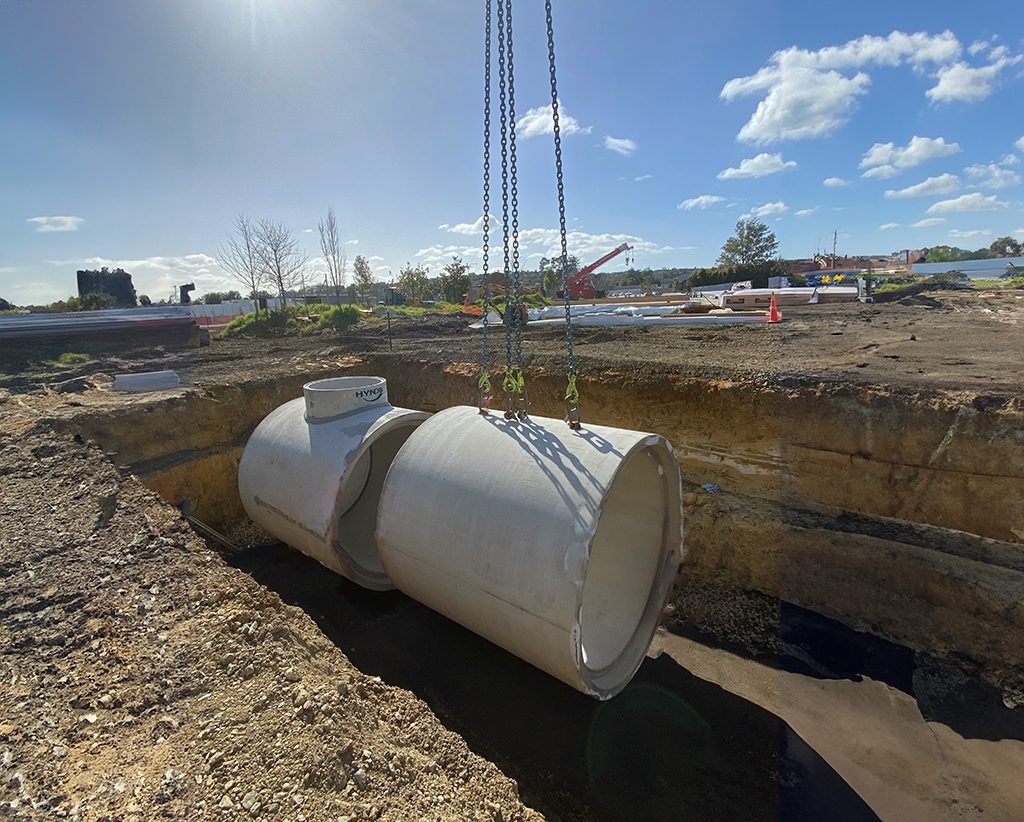

Hynds Retention Tank with Mul-T-Level™ Outlet
Hynds Retention Tanks are available in two formats: Ring joint or flanged base type.
RJ type:
Comprising reinforced concrete pipes with rubber ring joints.
The RJ retention tank usually comprises a spigot–plugged pipe, standard intermediate pipes and a collar-plugged pipe. The spigot and collar plugs are factory cast to ensure water tightness and integrity.
A manhole offtake is factory-fitted to one or more pipes to provide easy access for maintenance, etc.
RJ type retention tanks are usually used where the location allows for the installation of a long narrow tank.
FB Type:
Comprising Hynds flanged base manhole risers and a precast concrete lid.
The FB retention tanks are supplied with a PVC slip coupler and Hynds Mut-T-Level™ outlet cast in or fitted at the time of manufacture.
The Mul-T-Level™ outlet enables the tank to be used for detention and retention. The retention volume is set by fitting the lowest orifice some way up the Mul-T-Level™ outlet.
